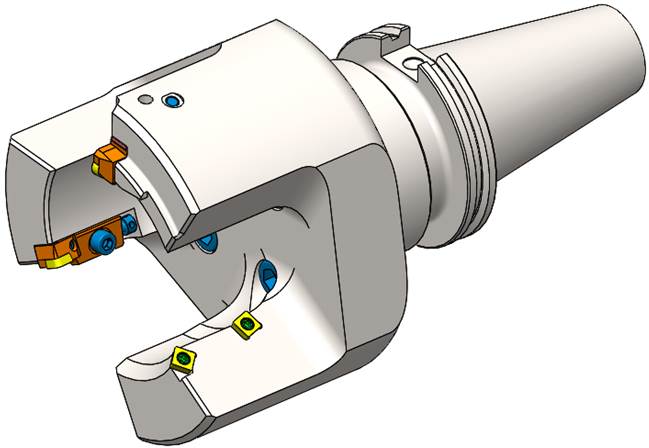

Advanced Cutting Tool Systems Actuated Tools are available in draw bar and coolant actuated motion. Our Actuated Indexable Cutting Tools are designed to eliminate tool grinding, reduce downtime, improve tool life and combine operations for increased productivity.



Actuated Tooling Applications

  • Cross-Facing

  • Finish Bore with Size Compensation

  • Internal Bore Grooving

  • Internal Bore Undercutting

  • Multi-Feature Machining

  • Available in draw bar or coolant actuated motion

actuated tooling

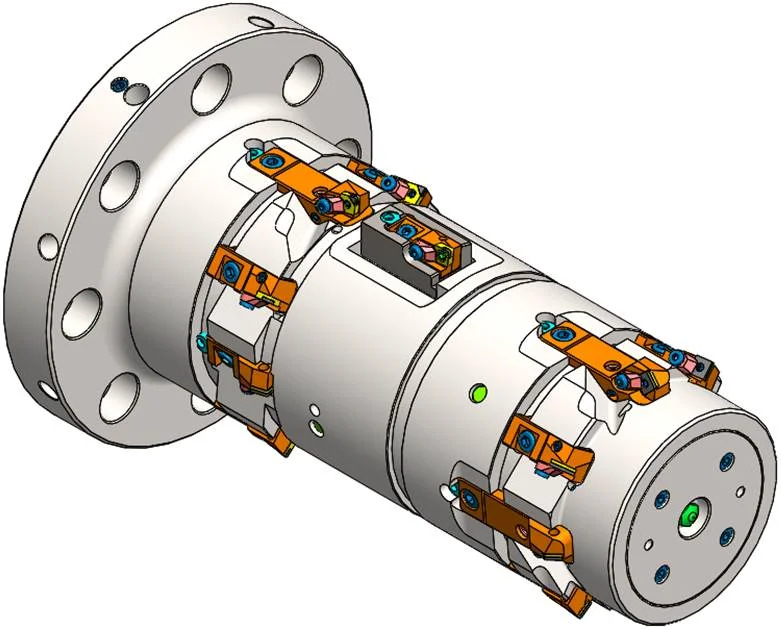

CYLINDER BORING



Engine Blocks

  • Semi-Finish and Finish

  • Top and Bottom Chamfering

  • Bottom Hone Clearance

  • Roughing



   Design Features

  • Indexable Inserts

  • Quick-Change Nose Piece

  • Pre-Set Tooling

  • Compatible with All Cylinder Boring Machines

  • Coolant Through Spindle Option

  • Rigid Construction



   Machine Benefits

  • Higher Cutting Speeds

  • Increase Productivity

  • Improve Tool Life

  • Eliminate Tool Grinding

  • Combine Operations

  • Reduce Downtime

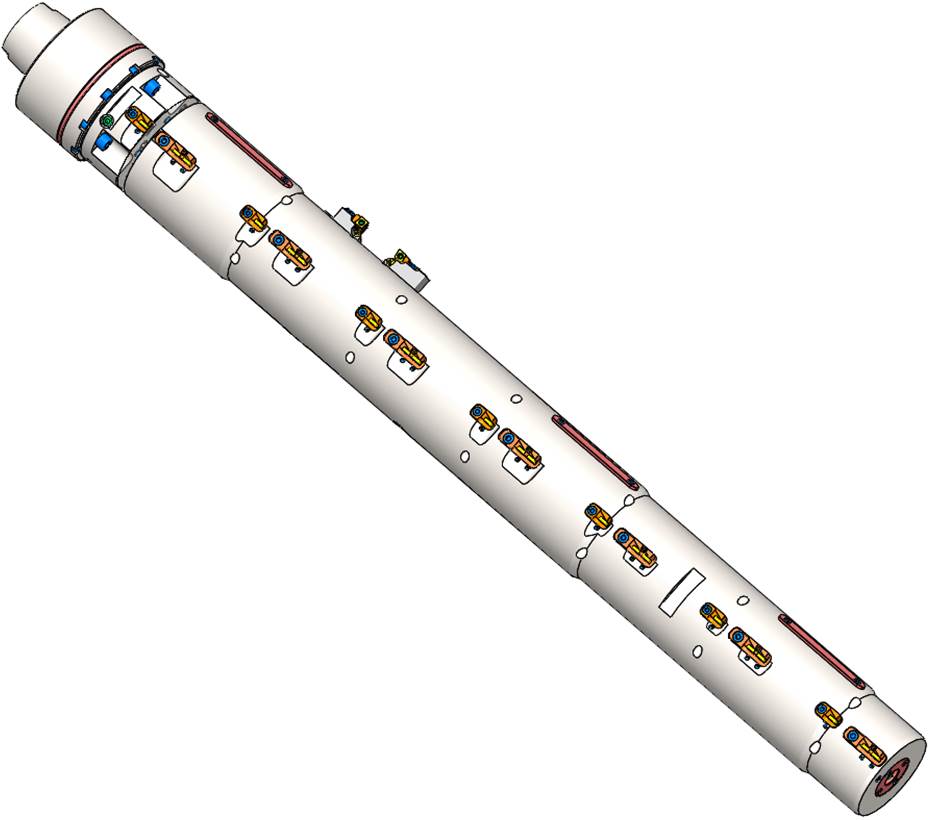

CAM & CRANK LINE BORING BARS

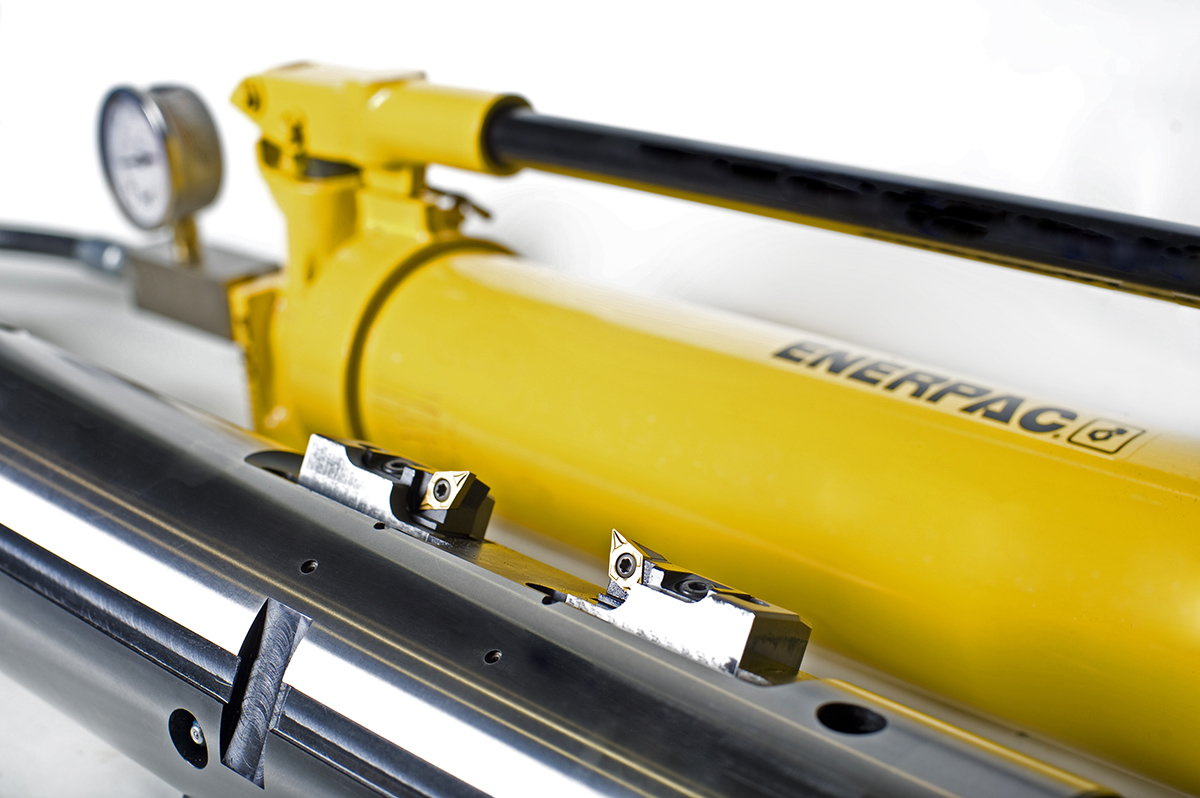

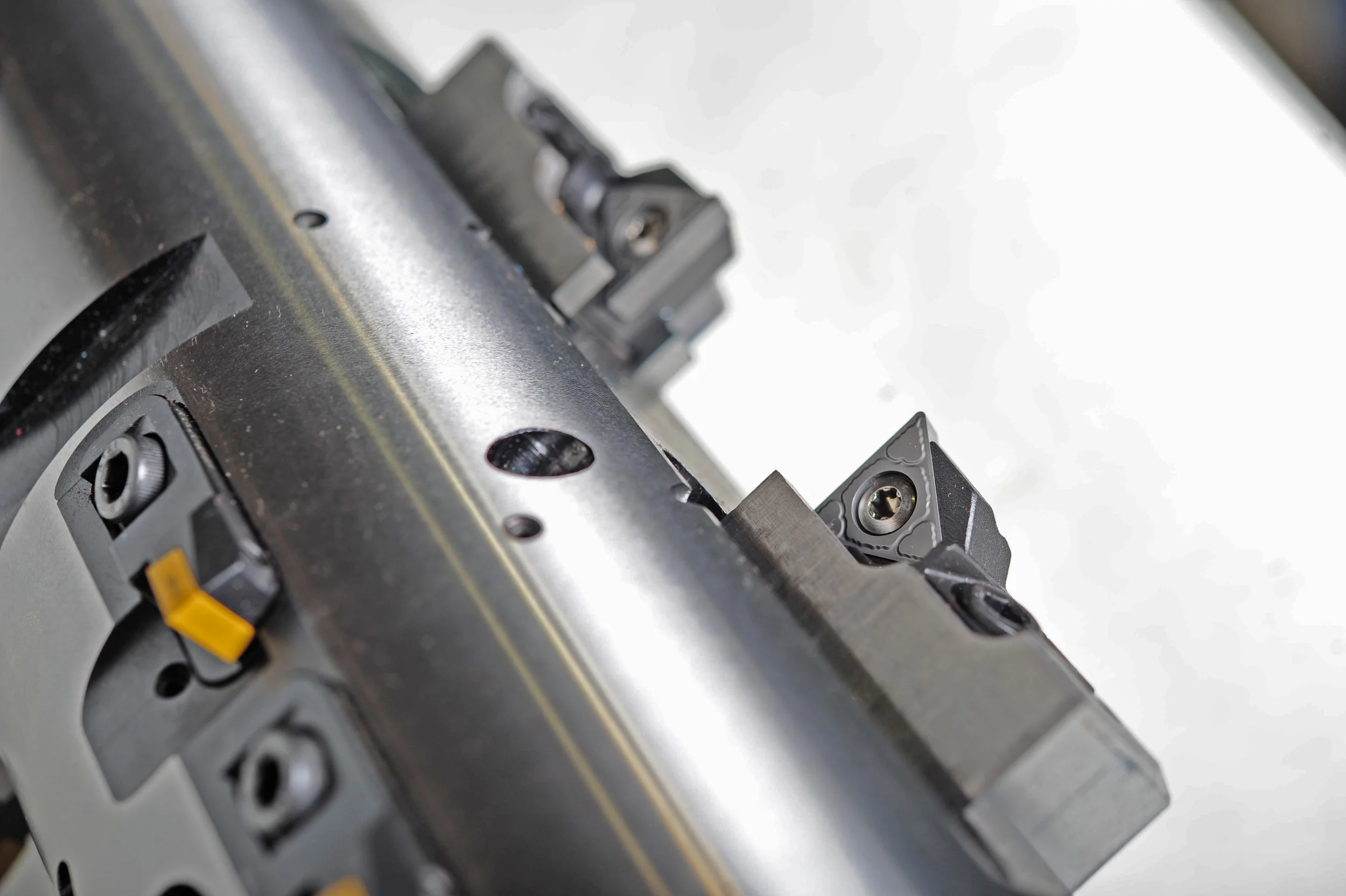

Advanced Cutting Tool Systems Line Boring bars are precision ground to within 0002" (.005mm) T.I.R. to lengths of 63" (1600mm) or more, offering microadjustability, wear resistant carbide components, industry standard inserts and an optional unique anti-vibration dampening system.

As applied to the machining of crankshaft and camshaft journals, these precision boring systems provide superior surface finishes, exceptional quality and extended tool life.

Advanced Cutting Tool Systems Actuated Cutting Tools for Cam & Crank Line Boring Bars are precision boring systems that provide that provide microadjustability, wear resistant carbide components and superior surface finishes.
